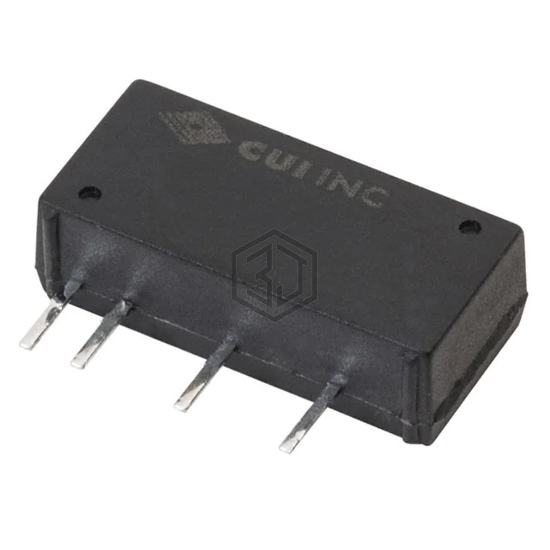

DC DC CONVERTER 3.3V 1W
PDM1-S12-S3-S is a DC DC Converters manufactured by CUI Inc.. DC DC CONVERTER 3.3V 1W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, package / case 6-SIP Module, 4 Leads, current - output (max) 303mA.
In Stock: 40
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 303mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 105°C |
| Efficiency | 76% |
| Mounting Type | Through Hole |
| Package / Case | 6-SIP Module, 4 Leads |
| Size / Dimension | 0.77" L x 0.24" W x 0.37" H (19.5mm x 6.0mm x 9.3mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
