DC DC CONVERTER +/-5V 1W

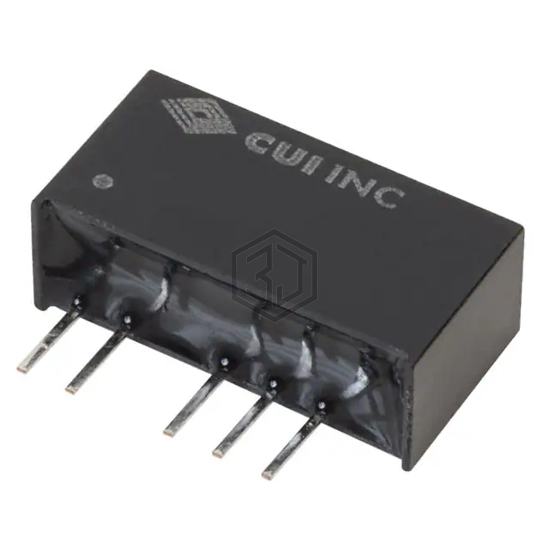

PCN1-S12-D5-S is a DC DC Converters manufactured by CUI Inc.. DC DC CONVERTER +/-5V 1W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, package / case 6-SIP Module, 5 Leads, current - output (max) 100mA, 100mA.
In Stock: 207
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 100mA, 100mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 77% |
| Mounting Type | Through Hole |
| Package / Case | 6-SIP Module, 5 Leads |
| Size / Dimension | 0.77" L x 0.28" W x 0.40" H (19.5mm x 7.2mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | EN |
| Standard Number | 55032 Class A |
Submit your RFQ for PCN1-S12-D5-S and get a quote within 24 hours.
