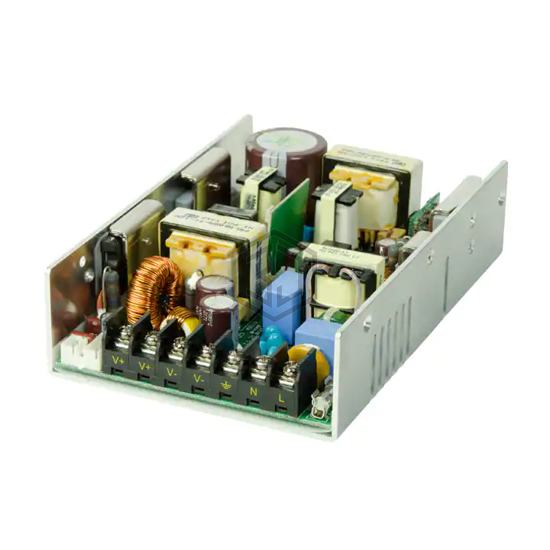

AC/DC CONVERTER 12V 220W
PCM-400-12-U is a AC DC Converters manufactured by CUI Inc.. AC/DC CONVERTER 12V 220W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm).
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 18.33 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 220W (400W Forced Air) |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 85% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Remote On/Off, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) |
| Approval Agency | CB Scheme, EN, IEC, SIQ, TUV, UL |
| Standard Number | 55024; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
