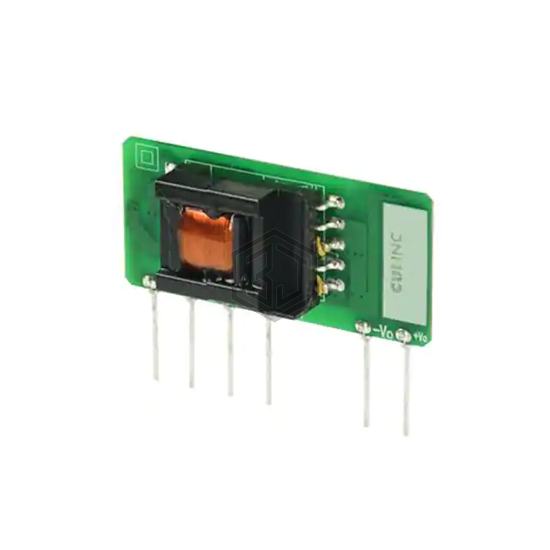

AC/DC CONVERTER 9V 5W
PBO-5-S9 is a AC DC Converters manufactured by CUI Inc.. AC/DC CONVERTER 9V 5W. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C (With Derating), voltage - input 85 ~ 264 VAC, 100 ~ 400 VDC, package / case 14-SIP Module, 6 Leads.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC, 100 ~ 400 VDC |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 560mA |
| Power (Watts) | 5 W |
| Applications | ITE (Commercial) |
| Features | Universal Input |
| Operating Temperature | -25°C ~ 85°C (With Derating) |
| Efficiency | 75% |
| Mounting Type | Through Hole |
| Package / Case | 14-SIP Module, 6 Leads |
| Size / Dimension | 1.57" L x 0.50" W x 0.79" H (40.0mm x 12.8mm x 20.0mm) |
| Approval Agency | CB Scheme, EN, IEC, UL |
| Standard Number | 55024; 55032 Class A; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
