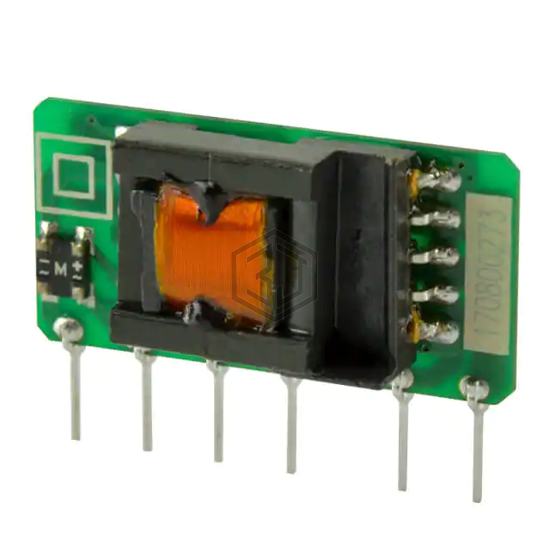

AC/DC CONVERTER 15V 1W
PBO-1-S15 is a AC DC Converters manufactured by CUI Inc.. AC/DC CONVERTER 15V 1W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), voltage - input 85 ~ 305 VAC, 70 ~ 430 VDC, package / case 12-SIP Module, 6 Leads.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 305 VAC, 70 ~ 430 VDC |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 67mA |
| Power (Watts) | 1 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 69% |
| Mounting Type | Through Hole |
| Package / Case | 12-SIP Module, 6 Leads |
| Size / Dimension | 1.38" L x 0.43" W x 0.71" H (35.0mm x 11.0mm x 18.0mm) |
| Approval Agency | CB Scheme, EN, IEC, UL |
| Standard Number | 55024; 55032 Class A; 60950-1; 61000-3-2; 61000-3-3 |
