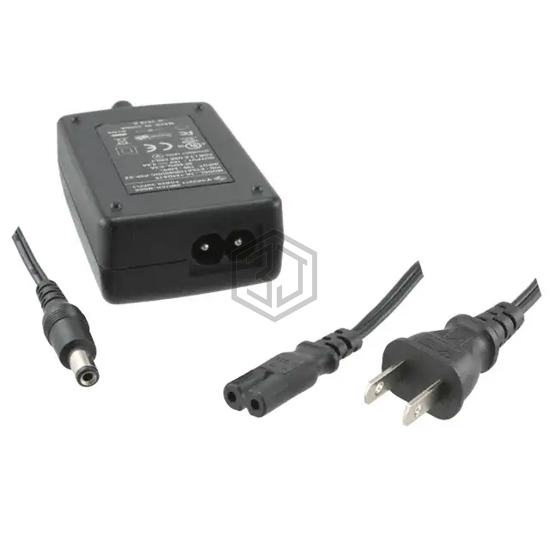

AC/DC DESKTOP ADAPTER 18V 12W
ETSA180066UDC-P5P-SZ is a AC DC Desktop, Wall Adapters manufactured by CUI Inc.. AC/DC DESKTOP ADAPTER 18V 12W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 660mA, size / dimension 2.95" L x 1.87" W x 1.07" H (75.0mm x 47.5mm x 27.3mm).
In Stock: 85
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Region Utilized | North America |
| Form | Desktop (Class II) |
| Input Type | Cord |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 18V |
| Current - Output (Max) | 660mA |
| Power (Watts) | 12 W |
| No Load Power Consumption | 300mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level V |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm |
| Cord Length | - |
| Input Connector | IEC 320-C8 |
| Features | - |
| Size / Dimension | 2.95" L x 1.87" W x 1.07" H (75.0mm x 47.5mm x 27.3mm) |
| Approval Agency | cULus, GS, PSE |
| Standard Number | 60950-1 |
Submit your RFQ for ETSA180066UDC-P5P-SZ and get a quote within 24 hours.
