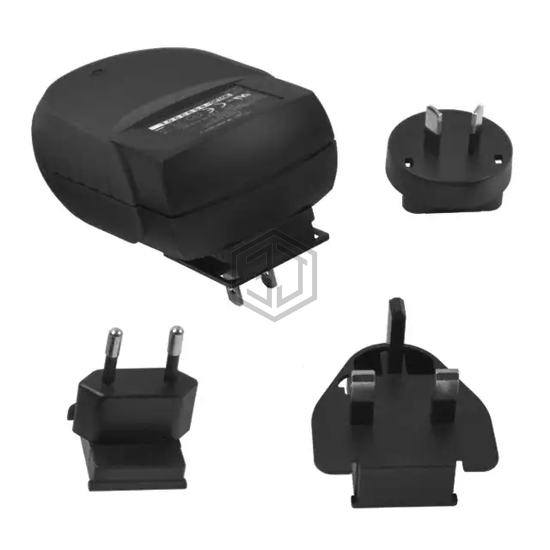

AC/DC WALL MOUNT ADAPTER 24V 30W
EMMA240125-P5P-IC is a AC DC Desktop, Wall Adapters manufactured by CUI Inc.. AC/DC WALL MOUNT ADAPTER 24V 30W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 1.25A, size / dimension 4.28" L x 2.44" W x 1.45" H (108.7mm x 62.0mm x 36.7mm).
In Stock: 149
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Region Utilized | International |
| Form | Wall Mount (Class II) |
| Input Type | Multi-Blade (Included) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 1.25A |
| Power (Watts) | 30 W |
| No Load Power Consumption | 300mW (Max) |
| Polarization | Positive Center |
| Applications | Medical |
| Efficiency | Level V |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm |
| Cord Length | 70.9" (1.80m) |
| Input Connector | Multi-Blade |
| Features | - |
| Size / Dimension | 4.28" L x 2.44" W x 1.45" H (108.7mm x 62.0mm x 36.7mm) |
| Approval Agency | EN, FCC, SIQ, TUV, UL |
| Standard Number | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3; 61000-6-1; 61010-1 |
Submit your RFQ for EMMA240125-P5P-IC and get a quote within 24 hours.
