6 X 6 MM, 7 MM ACTUATOR HEIGHT,

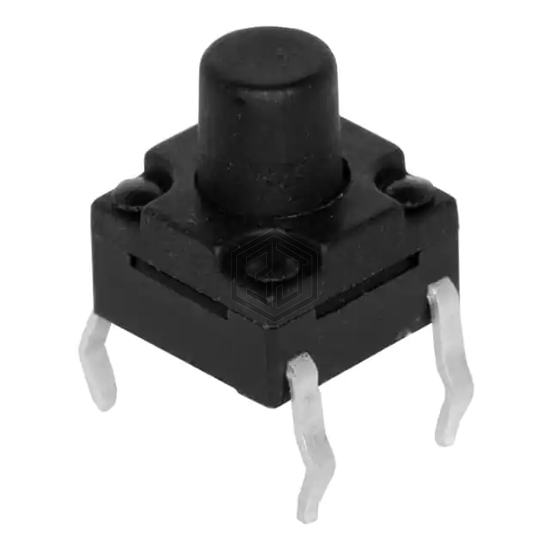

TS03-66-70-BK-160-LCR-D-67 is a Tactile Switches manufactured by CUI Devices. 6 X 6 MM, 7 MM ACTUATOR HEIGHT,. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 80°C, termination style PC Pin, ingress protection IP67 - Dust Tight, Waterproof.
In Stock: 1,929
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Type | Standard |
| Mounting Type | Through Hole |
| Actuator Height off PCB, Vertical | 7.00mm |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Top Actuated |
| Termination Style | PC Pin |
| Outline | 6.10mm x 6.10mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 160gf |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Operating Temperature | -30°C ~ 80°C |
