2~24 POLES, PLUGGABLE, VERTICAL,

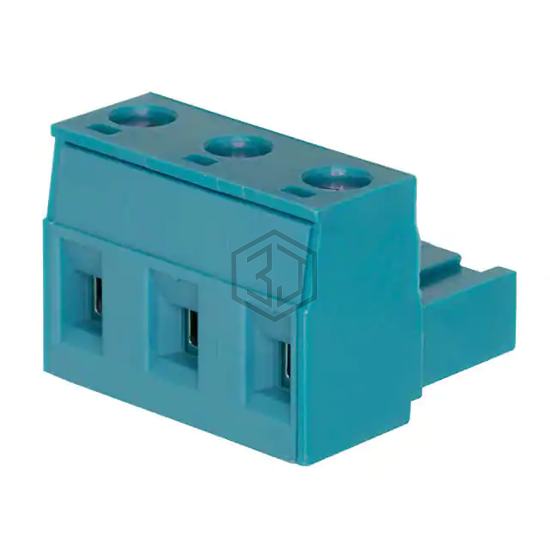

TBP05P1-762-07BE is a Terminal Blocks - Headers, Plugs and Sockets manufactured by CUI Devices. 2~24 POLES, PLUGGABLE, VERTICAL,. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 105°C, color Blue, termination style Screw.
In Stock: 400
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 7 |
| Positions Per Level | 7 |
| Number of Levels | 1 |
| Pitch | 0.300" (7.62mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screw |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 10A |
| Voltage - IEC | 1 kV |
| Current - UL | 15 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 12-28 AWG |
| Wire Gauge or Range - mm² | 0.5-2.5mm² |
| Color | Blue |
| Operating Temperature | -40°C ~ 105°C |
| Contact Mating Finish | Nickel |
| Features | Retention Latches (Non-Wire Side) |
Submit your RFQ for TBP05P1-762-07BE and get a quote within 24 hours.
