TERMINAL BLOCK, PLUGGABLE, 3.81,

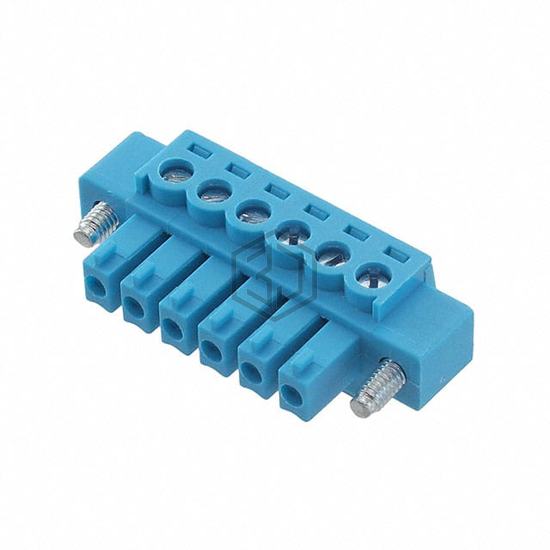

TBP02P1W-381-06BE is a Terminal Blocks - Headers, Plugs and Sockets manufactured by CUI Devices. TERMINAL BLOCK, PLUGGABLE, 3.81,. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 105°C, color Blue, termination style Screw - Leaf Spring, Wire Guard.
In Stock: 21,765
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Plug, Female Sockets |
| Number of Positions | 6 |
| Positions Per Level | 6 |
| Number of Levels | 1 |
| Pitch | 0.150" (3.81mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screw - Leaf Spring, Wire Guard |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 7A |
| Voltage - IEC | 250 V |
| Current - UL | 8 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 16-28 AWG |
| Wire Gauge or Range - mm² | 1.5mm² |
| Color | Blue |
| Operating Temperature | -40°C ~ 105°C |
| Contact Mating Finish | Nickel |
| Features | Mating Flange |
Submit your RFQ for TBP02P1W-381-06BE and get a quote within 24 hours.
