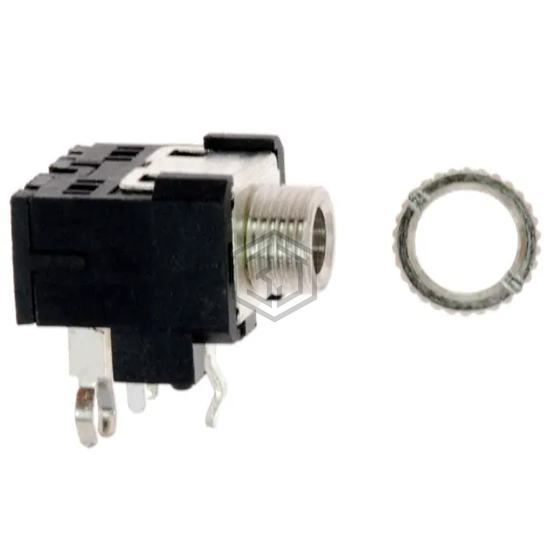

SJ1-3545 - CUI Devices - Barrel - Audio Connectors

SJ1-3545

CUI Devices

CONN JACK STEREO 3.5MM R/A

SJ1-3545 is a Barrel - Audio Connectors manufactured by CUI Devices. CONN JACK STEREO 3.5MM R/A. Key specifications: mounting type Panel Mount, Through Hole, Right Angle, operating temperature -25°C ~ 85°C, termination Kinked Pin, number of positions/contacts 3 Conductors, 5 Contacts.

In Stock: 3,368

Product Attributes

AttributeValue
Product StatusActive
Connector TypePhone Jack
GenderFemale
Signal LinesStereo (3 Conductor, TRS)
Industry Recognized Mating Diameter3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter0.142" (3.60mm)
Number of Positions/Contacts3 Conductors, 5 Contacts
Internal Switch(s)Two Switches
Mounting TypePanel Mount, Through Hole, Right Angle
TerminationKinked Pin
ShieldingUnshielded
FeaturesMounting Hardware, Thread Lock
Insulation Color-
Operating Temperature-25°C ~ 85°C

Frequently Asked Questions

SJ1-3545 is a Barrel - Audio Connectors manufactured by CUI Devices. CONN JACK STEREO 3.5MM R/A

The mounting type of SJ1-3545 is Panel Mount, Through Hole, Right Angle.

The operating temperature range of SJ1-3545 is -25°C ~ 85°C.

The termination type of SJ1-3545 is Kinked Pin.

The shielding of SJ1-3545 is Unshielded.
