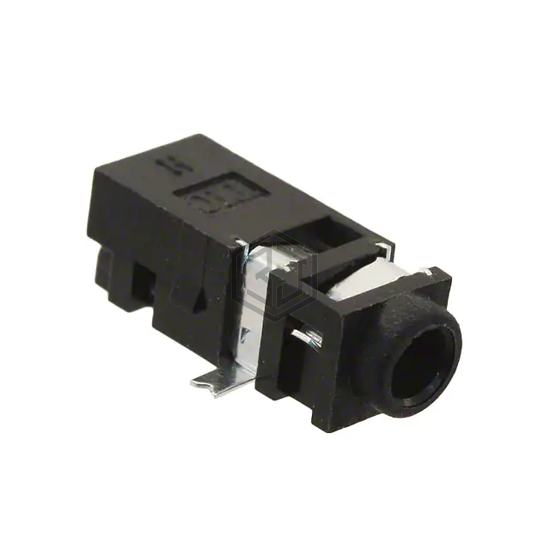

CONN JACK STEREO 2.5MM SMD R/A
SJ-2523-SMT-TR is a Barrel - Audio Connectors manufactured by CUI Devices. CONN JACK STEREO 2.5MM SMD R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -25°C ~ 85°C, termination Solder, number of positions/contacts 3 Conductors, 3 Contacts.
In Stock: 80,328
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Phone Jack |
| Gender | Female |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Industry Recognized Mating Diameter | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone |
| Actual Diameter | 0.102" (2.60mm) |
| Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Shielding | Unshielded |
| Features | Board Guide |
| Insulation Color | - |
| Operating Temperature | -25°C ~ 85°C |
Submit your RFQ for SJ-2523-SMT-TR and get a quote within 24 hours.
