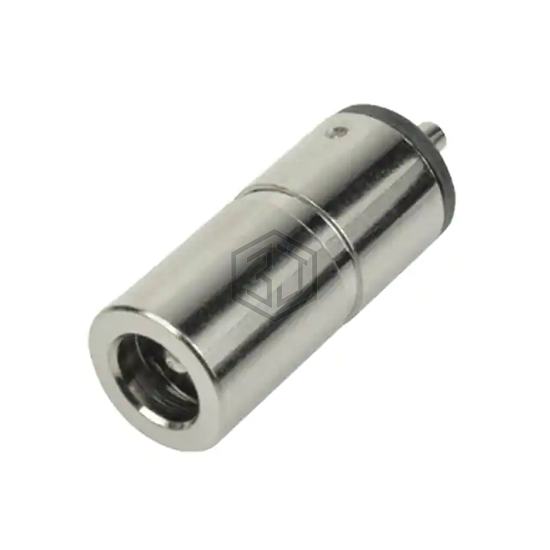

POWER JACK, 1.35 X 3.5 MM, STRAI
PR-1335D is a Barrel - Power Connectors manufactured by CUI Devices. POWER JACK, 1.35 X 3.5 MM, STRAI. Key specifications: mounting type Free Hanging (In-Line), voltage - rated 24VDC, current rating (amps) 5 A, termination Solder Cup.
In Stock: 622
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 1.30mm ID (0.051"), 3.60mm OD (0.142") |
| Actual Diameter | 0.051" (1.30mm ID), 0.236" (6.00mm OD) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Shielding | Unshielded |
| Features | - |
| Insulation Color | Black |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 5 A |
| Mating Length/Depth | 0.394" (10.00mm) |
| Ingress Protection | - |
| Material Flammability Rating | - |
