CONN PWR PLUG 1.1X3.5MM SOLDER

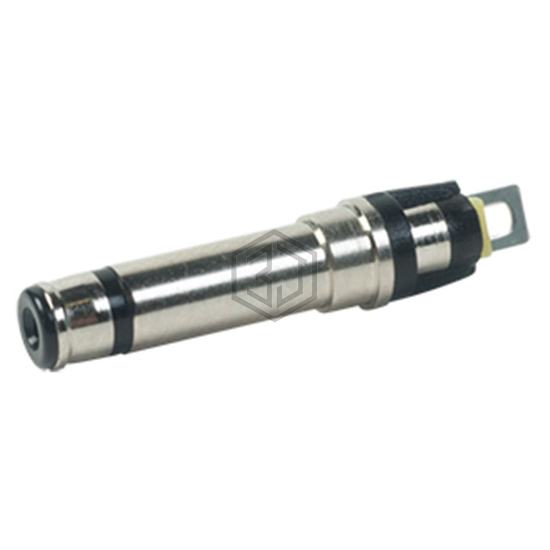

PPM-3-3511-SG is a Barrel - Power Connectors manufactured by CUI Devices. CONN PWR PLUG 1.1X3.5MM SOLDER. Key specifications: mounting type Free Hanging (In-Line), voltage - rated 24VDC, termination Solder Eyelet(s), number of positions/contacts 3 Conductors, 3 Contacts.
In Stock: 7,586
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug |
| Gender | Female |
| Industry Recognized Mating Diameter | 1.10mm ID (0.043"), 3.50mm OD (0.138") |
| Actual Diameter | 0.043" (1.10mm ID), 0.138" (3.50mm OD) |
| Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Eyelet(s) |
| Shielding | Unshielded |
| Features | - |
| Insulation Color | Black |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | - |
| Mating Length/Depth | 0.260" (6.60mm) |
| Ingress Protection | - |
| Material Flammability Rating | - |
