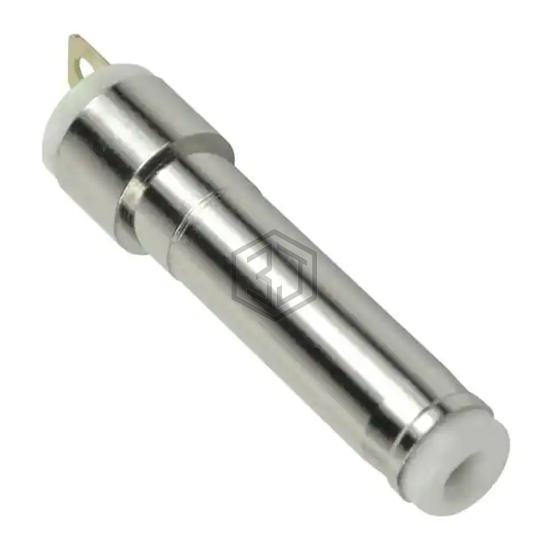

POWER PLUG, 1.35 X 3.5 X 20 MM,
PPM-2-35135-SG-WT is a Barrel - Power Connectors manufactured by CUI Devices. POWER PLUG, 1.35 X 3.5 X 20 MM,. Key specifications: mounting type Free Hanging (In-Line), voltage - rated 20VDC, current rating (amps) 4 A, termination Solder Eyelet.
In Stock: 736
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug |
| Gender | Female |
| Industry Recognized Mating Diameter | 1.35mm ID (0.053"), 3.50mm OD (0.138") |
| Actual Diameter | 0.053" (1.35mm ID), 0.138" (3.50mm OD) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Eyelet |
| Shielding | Unshielded |
| Features | - |
| Insulation Color | White |
| Voltage - Rated | 20VDC |
| Current Rating (Amps) | 4 A |
| Mating Length/Depth | 0.535" (13.60mm) |
| Ingress Protection | - |
| Material Flammability Rating | - |
Submit your RFQ for PPM-2-35135-SG-WT and get a quote within 24 hours.
