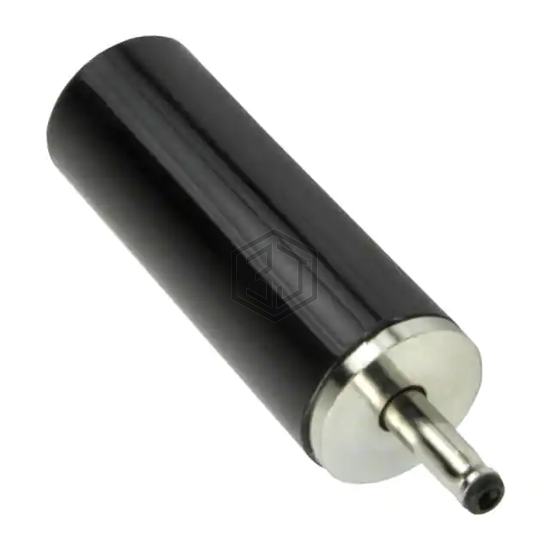

POWER PLUG, .6 X 2.0 X 6 MM, STR
PP3-0620 is a Barrel - Power Connectors manufactured by CUI Devices. POWER PLUG, .6 X 2.0 X 6 MM, STR. Key specifications: mounting type Free Hanging (In-Line), voltage - rated 20VDC, current rating (amps) 1 A, termination Solder Eyelet.
In Stock: 465
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug |
| Gender | Female |
| Industry Recognized Mating Diameter | 0.65mm ID (0.026"), 2.00mm OD (0.079") |
| Actual Diameter | 0.024" (0.60mm ID), 0.079" (2.00mm OD) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Eyelet |
| Shielding | Unshielded |
| Features | Cover |
| Insulation Color | Black |
| Voltage - Rated | 20VDC |
| Current Rating (Amps) | 1 A |
| Mating Length/Depth | 0.236" (6.00mm) |
| Ingress Protection | - |
| Material Flammability Rating | - |
Submit your RFQ for PP3-0620 and get a quote within 24 hours.
