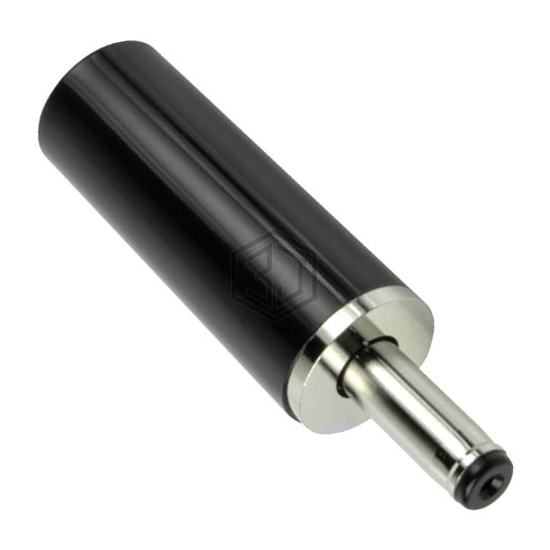

POWER PLUG, 0.9 X 3.2 X 9.0 MM,
PP3-017 is a Barrel - Power Connectors manufactured by CUI Devices. POWER PLUG, 0.9 X 3.2 X 9.0 MM,. Key specifications: mounting type Free Hanging (In-Line), voltage - rated 20VDC, current rating (amps) 2 A, termination Solder Eyelet.
In Stock: 7,329
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug |
| Gender | Female |
| Industry Recognized Mating Diameter | 0.90mm ID (0.035"), 3.20mm OD (0.126") |
| Actual Diameter | 0.035" (0.90mm ID), 0.126" (3.20mm OD) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Eyelet |
| Shielding | Unshielded |
| Features | Cover |
| Insulation Color | Black |
| Voltage - Rated | 20VDC |
| Current Rating (Amps) | 2 A |
| Mating Length/Depth | 0.354" (9.00mm) |
| Ingress Protection | - |
| Material Flammability Rating | - |
