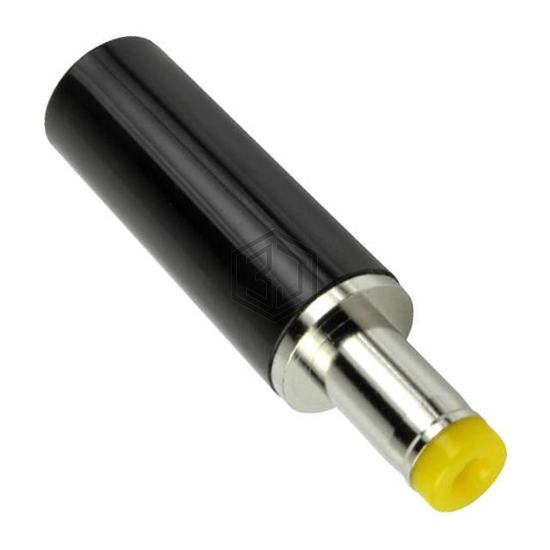

POWER PLUG, 1.7 X 4.75 X 9.5 MM,
PP3-014 is a Barrel - Power Connectors manufactured by CUI Devices. POWER PLUG, 1.7 X 4.75 X 9.5 MM,. Key specifications: mounting type Free Hanging (In-Line), voltage - rated 20VDC, current rating (amps) 6 A, termination Solder Eyelet.
In Stock: 469
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug |
| Gender | Female |
| Industry Recognized Mating Diameter | 1.70mm ID (0.067"), 4.75mm OD (0.187") |
| Actual Diameter | 0.067" (1.70mm ID), 0.187" (4.75mm OD) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Eyelet |
| Shielding | Unshielded |
| Features | Cover |
| Insulation Color | Yellow |
| Voltage - Rated | 20VDC |
| Current Rating (Amps) | 6 A |
| Mating Length/Depth | 0.374" (9.50mm) |
| Ingress Protection | - |
| Material Flammability Rating | - |
Submit your RFQ for PP3-014 and get a quote within 24 hours.
