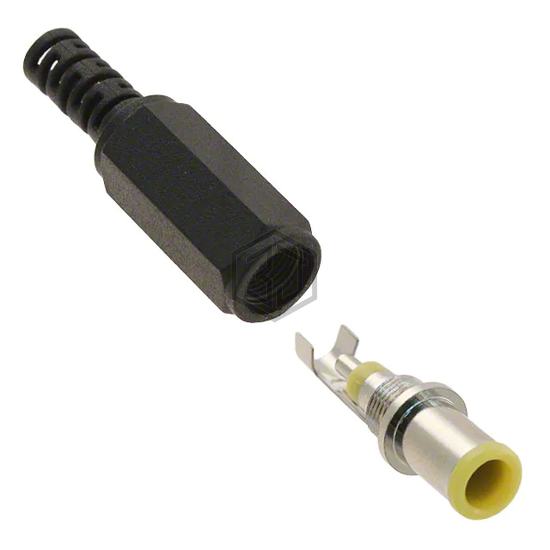

CONN PWR PLUG 1.4X4.3X6.5MM SLDR
PP-016 is a Barrel - Power Connectors manufactured by CUI Devices. CONN PWR PLUG 1.4X4.3X6.5MM SLDR. Key specifications: mounting type Free Hanging (In-Line), voltage - rated 24VDC, current rating (amps) 6 A, termination Solder.
In Stock: 2,129
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug |
| Gender | Male |
| Industry Recognized Mating Diameter | 1.40mm ID (0.055"), 4.30mm ID (0.169"), 6.50mm OD (0.256") EIAJ-5 |
| Actual Diameter | 0.055" (1.40mm ID), 0.256" (6.50mm OD) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder |
| Shielding | Unshielded |
| Features | Strain Relief |
| Insulation Color | Yellow |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 6 A |
| Mating Length/Depth | 0.374" (9.50mm) |
| Ingress Protection | - |
| Material Flammability Rating | - |
Submit your RFQ for PP-016 and get a quote within 24 hours.
