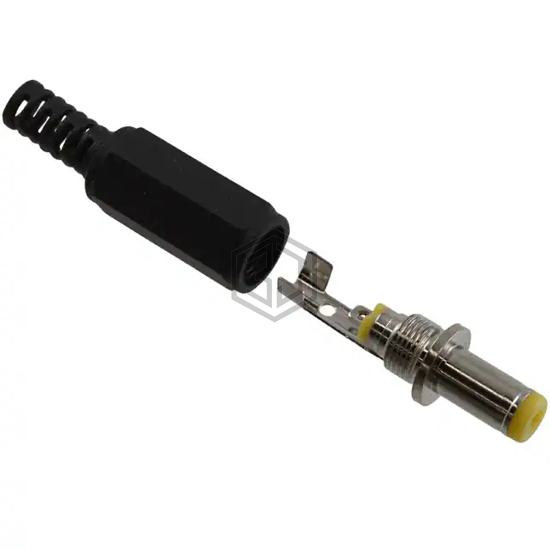

CONN PWR PLUG 1.7X4.75MM SLDR
PP-014 is a Barrel - Power Connectors manufactured by CUI Devices. CONN PWR PLUG 1.7X4.75MM SLDR. Key specifications: mounting type Free Hanging (In-Line), voltage - rated 24VDC, current rating (amps) 5 A, termination Solder Eyelet(s).
In Stock: 2,412
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug |
| Gender | Female |
| Industry Recognized Mating Diameter | 1.70mm ID (0.067"), 4.75mm OD (0.187") EIAJ-3 |
| Actual Diameter | 0.067" (1.70mm ID), 0.187" (4.75mm OD) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Eyelet(s) |
| Shielding | Unshielded |
| Features | Strain Relief |
| Insulation Color | Yellow |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 5 A |
| Mating Length/Depth | 0.374" (9.50mm) |
| Ingress Protection | - |
| Material Flammability Rating | - |
Submit your RFQ for PP-014 and get a quote within 24 hours.
