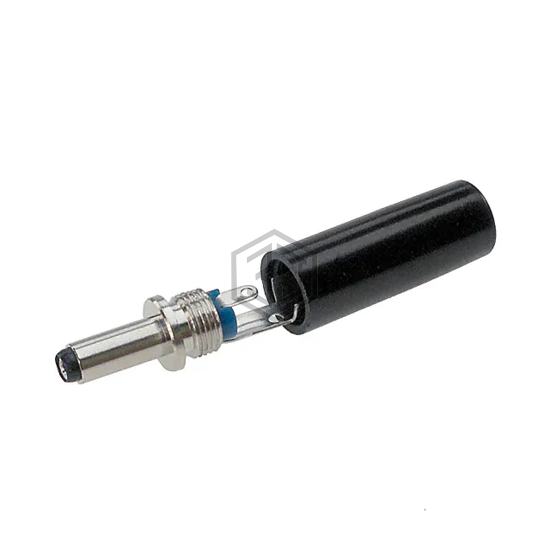

CONN PWR PLUG 1X3.5MM SOLDER
PP-002C is a Barrel - Power Connectors manufactured by CUI Devices. CONN PWR PLUG 1X3.5MM SOLDER. Key specifications: mounting type Free Hanging (In-Line), voltage - rated 16VDC, current rating (amps) 2.5 A, termination Solder Eyelet(s).
In Stock: 2,131
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Plug |
| Gender | Female |
| Industry Recognized Mating Diameter | 1.00mm ID (0.039"), 3.50mm OD (0.138") |
| Actual Diameter | 0.039" (1.00mm ID), 0.138" (3.50mm OD) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Eyelet(s) |
| Shielding | Unshielded |
| Features | - |
| Insulation Color | Black |
| Voltage - Rated | 16VDC |
| Current Rating (Amps) | 2.5 A |
| Mating Length/Depth | 0.374" (9.50mm) |
| Ingress Protection | - |
| Material Flammability Rating | - |
Submit your RFQ for PP-002C and get a quote within 24 hours.
