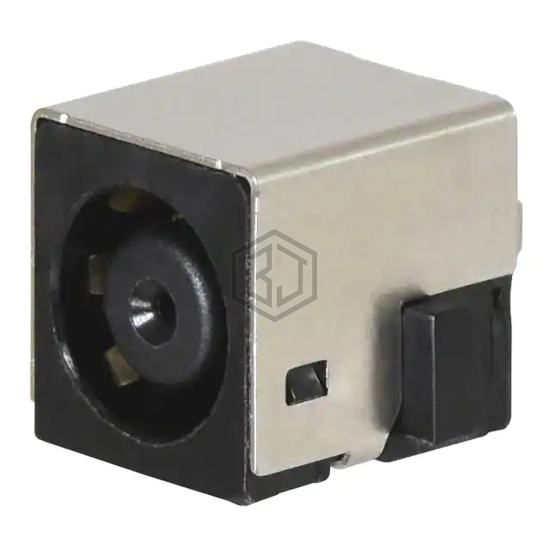

PWR JACK 0.6X5.0X7.5MM VERTICAL
PJ-097H is a Barrel - Power Connectors manufactured by CUI Devices. PWR JACK 0.6X5.0X7.5MM VERTICAL. Key specifications: mounting type Panel Mount, voltage - rated 24VDC, current rating (amps) 8 A, termination Solder Eyelet(s).
In Stock: 1,306
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Female |
| Industry Recognized Mating Diameter | 0.80mm ID (0.031"), 5.00mm OD (0.197") |
| Actual Diameter | 0.031" (0.80mm ID), 0.197" (5.00mm OD) |
| Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Panel Mount |
| Mounting Feature | - |
| Termination | Solder Eyelet(s) |
| Shielding | Shielded |
| Features | - |
| Insulation Color | - |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 8 A |
| Mating Length/Depth | 0.362" (9.20mm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
