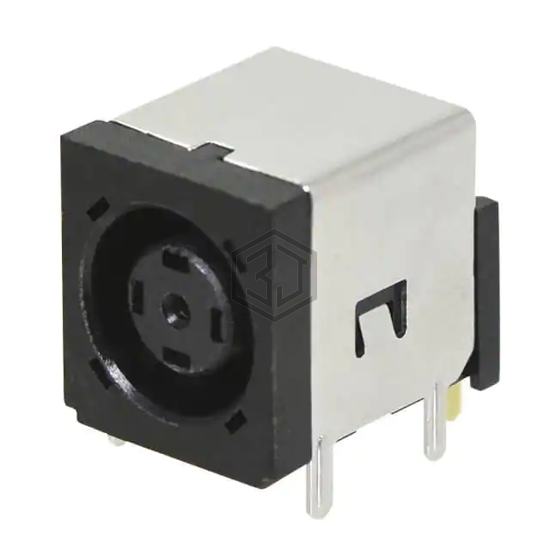

PWR JACK 0.6X5.0X7.5MM RT THROUG
PJ-096H is a Barrel - Power Connectors manufactured by CUI Devices. PWR JACK 0.6X5.0X7.5MM RT THROUG. Key specifications: mounting type Through Hole, Right Angle, voltage - rated 24VDC, current rating (amps) 8 A, termination Solder.
In Stock: 827
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Female |
| Industry Recognized Mating Diameter | 5.10mm ID (0.201"), 7.40mm OD (0.291") |
| Actual Diameter | 0.196" (5.00mm ID), 0.291" (7.40mm OD) |
| Number of Positions/Contacts | 4 Conductors, 4 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Through Hole, Right Angle |
| Mounting Feature | - |
| Termination | Solder |
| Shielding | Shielded |
| Features | Board Guide |
| Insulation Color | - |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 8 A |
| Mating Length/Depth | 0.354" (9.00mm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
