PWR JACK 1.65X4.4 HORIZONTAL MID

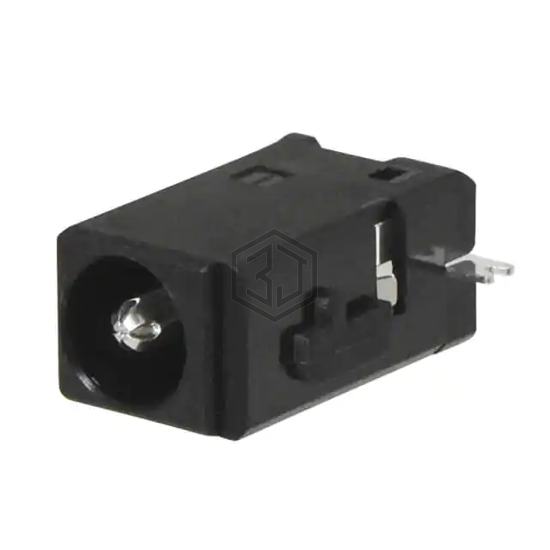

PJ-091H-MSMT-TR is a Barrel - Power Connectors manufactured by CUI Devices. PWR JACK 1.65X4.4 HORIZONTAL MID. Key specifications: mounting type Board Cutout, Surface Mount, Right Angle, voltage - rated 24VDC, current rating (amps) 5 A, termination Solder.
In Stock: 1,518
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 1.70mm ID (0.067"), 4.00mm OD (0.157") |
| Actual Diameter | 0.065" (1.65mm ID), 0.173" (4.40mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Board Cutout, Surface Mount, Right Angle |
| Mounting Feature | - |
| Termination | Solder |
| Shielding | Shielded |
| Features | Board Guide |
| Insulation Color | - |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 5 A |
| Mating Length/Depth | 0.315" (8.00mm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for PJ-091H-MSMT-TR and get a quote within 24 hours.
