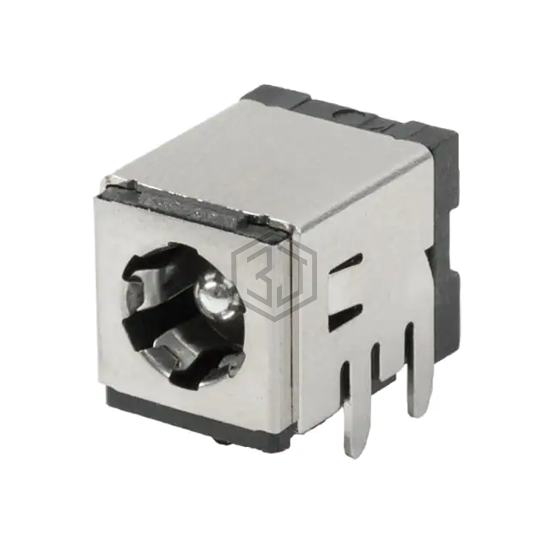

CONN PWR JACK 2.5X5.5MM SOLDER
PJ-082BH is a Barrel - Power Connectors manufactured by CUI Devices. CONN PWR JACK 2.5X5.5MM SOLDER. Key specifications: mounting type Through Hole, Right Angle, voltage - rated 24VDC, current rating (amps) 10 A, termination Solder.
In Stock: 19,606
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
| Actual Diameter | 0.098" (2.50mm ID), 0.256" (6.50mm OD) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Through Hole, Right Angle |
| Mounting Feature | - |
| Termination | Solder |
| Shielding | Shielded |
| Features | Board Guide |
| Insulation Color | - |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 10 A |
| Mating Length/Depth | 0.324" (8.23mm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for PJ-082BH and get a quote within 24 hours.
