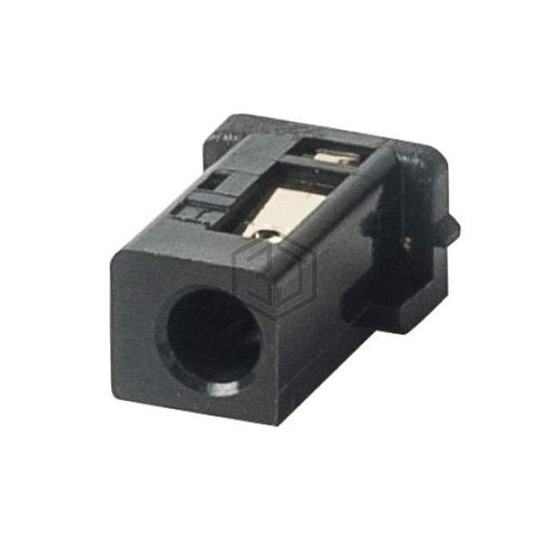

PJ-077
CONN PWR JACK
PJ-077 is a Barrel - Power Connectors manufactured by CUI Devices. CONN PWR JACK. Key specifications: mounting type Surface Mount, Right Angle, voltage - rated 24VDC, current rating (amps) 1 A, termination Solder.
In Stock: 434
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Female |
| Industry Recognized Mating Diameter | 0.60mm ID (0.024"), 2.00mm OD (0.079") |
| Actual Diameter | 0.020" (0.50mm ID), 0.083" (2.10mm OD) |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Surface Mount, Right Angle |
| Mounting Feature | - |
| Termination | Solder |
| Shielding | Unshielded |
| Features | - |
| Insulation Color | Black |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 1 A |
| Mating Length/Depth | 0.217" (5.50mm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
Frequently Asked Questions
PJ-077 is a Barrel - Power Connectors manufactured by CUI Devices. CONN PWR JACK
The mounting type of PJ-077 is Surface Mount, Right Angle.
The supply voltage of PJ-077 is 24VDC.
The current rating of PJ-077 is 1 A.
The shielding of PJ-077 is Unshielded.
