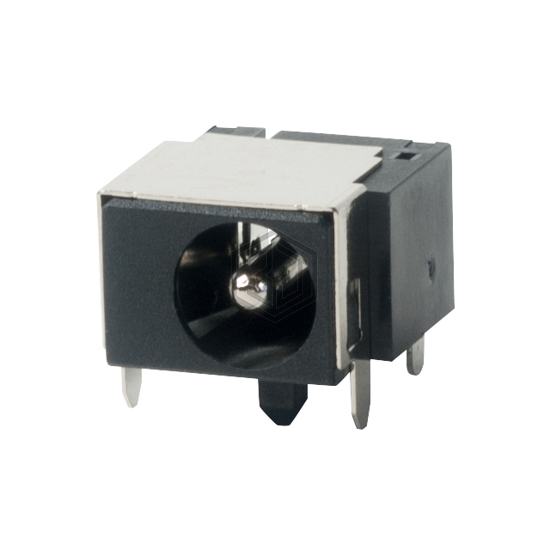

CONN PWR JACK 1.65X5.5MM SOLDER
PJ-076 is a Barrel - Power Connectors manufactured by CUI Devices. CONN PWR JACK 1.65X5.5MM SOLDER. Key specifications: mounting type Through Hole, Right Angle, voltage - rated 24VDC, current rating (amps) 2.5 A, termination Solder.
In Stock: 346
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 1.65mm ID (0.065"), 5.50mm OD (0.217") |
| Actual Diameter | 0.065" (1.65mm ID), 0.236" (6.00mm OD) |
| Number of Positions/Contacts | 3 Conductors, 4 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Through Hole, Right Angle |
| Mounting Feature | - |
| Termination | Solder |
| Shielding | Shielded |
| Features | Board Guide |
| Insulation Color | - |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 2.5 A |
| Mating Length/Depth | 0.323" (8.20mm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
