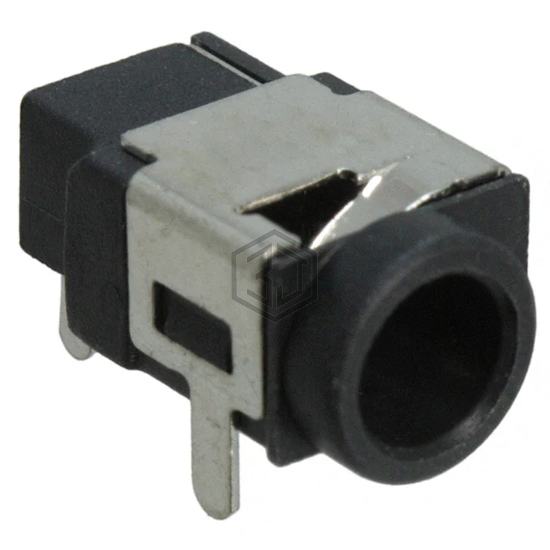

CONN PWR JACK 0.9X3.2MM SOLDER
PJ-071 is a Barrel - Power Connectors manufactured by CUI Devices. CONN PWR JACK 0.9X3.2MM SOLDER. Key specifications: mounting type Through Hole, Right Angle, voltage - rated 24VDC, current rating (amps) 2 A, termination Solder.
In Stock: 4,831
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 0.90mm ID (0.035"), 3.20mm OD (0.126") |
| Actual Diameter | 0.031" (0.80mm ID), 0.132" (3.35mm OD) |
| Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Internal Switch(s) | Does Not Contain Switch |
| Mounting Type | Through Hole, Right Angle |
| Mounting Feature | - |
| Termination | Solder |
| Shielding | Shielded |
| Features | Board Guide |
| Insulation Color | - |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 2 A |
| Mating Length/Depth | 0.276" (7.00mm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for PJ-071 and get a quote within 24 hours.
