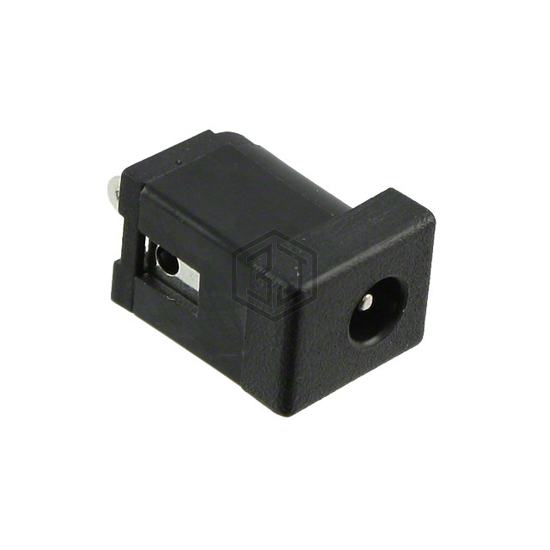

CONN PWR JACK 1.3X3.4MM SOLDER
PJ-055D is a Barrel - Power Connectors manufactured by CUI Devices. CONN PWR JACK 1.3X3.4MM SOLDER. Key specifications: mounting type Through Hole, voltage - rated 24VDC, current rating (amps) 2 A, termination Solder Eyelet(s).
In Stock: 7,780
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 1.30mm ID (0.051"), 3.40mm OD (0.134") |
| Actual Diameter | 0.039" (1.00mm ID), 0.150" (3.80mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Through Hole |
| Mounting Feature | - |
| Termination | Solder Eyelet(s) |
| Shielding | Unshielded |
| Features | - |
| Insulation Color | - |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 2 A |
| Mating Length/Depth | 0.354" (9.00mm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
