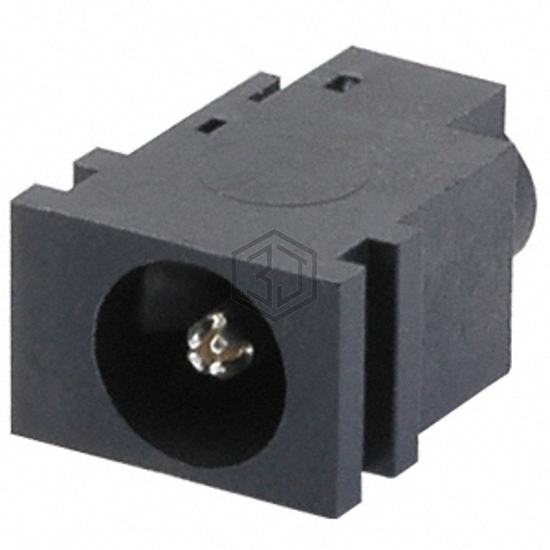

CONN POWER JACK 1.75X4.75MM
PJ-042 is a Barrel - Power Connectors manufactured by CUI Devices. CONN POWER JACK 1.75X4.75MM. Key specifications: mounting type Through Hole, Right Angle, voltage - rated 24VDC, current rating (amps) 2.5 A, termination Kinked Pin.
In Stock: 2,266
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 1.75mm ID (0.068"), 4.75mm OD (0.187") |
| Actual Diameter | 0.065" (1.65mm ID), 0.203" (5.15mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Through Hole, Right Angle |
| Mounting Feature | - |
| Termination | Kinked Pin |
| Shielding | Unshielded |
| Features | Board Guide |
| Insulation Color | - |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 2.5 A |
| Mating Length/Depth | 0.315" (8.00mm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for PJ-042 and get a quote within 24 hours.
