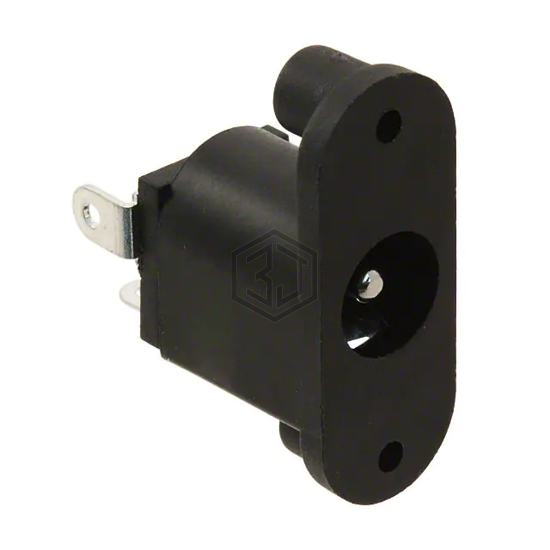

CONN PWR JACK 2X5.5MM SOLDER
PJ-039A is a Barrel - Power Connectors manufactured by CUI Devices. CONN PWR JACK 2X5.5MM SOLDER. Key specifications: mounting type Panel Mount, voltage - rated 24VDC, current rating (amps) 2.5 A, termination Solder Eyelet(s).
In Stock: 2,733
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") |
| Actual Diameter | 0.079" (2.00mm ID), 0.252" (6.40mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Termination | Solder Eyelet(s) |
| Shielding | Unshielded |
| Features | - |
| Insulation Color | - |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 2.5 A |
| Mating Length/Depth | 0.354" (9.00mm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
