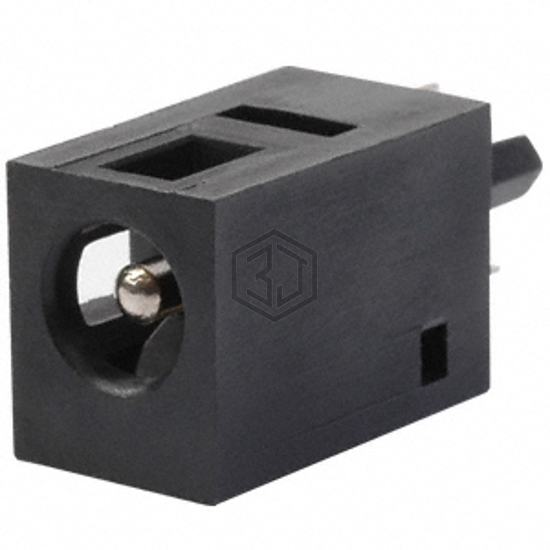

CONN PWR JACK 2.5X5.5MM SOLDER
PJ-034B is a Barrel - Power Connectors manufactured by CUI Devices. CONN PWR JACK 2.5X5.5MM SOLDER. Key specifications: mounting type Through Hole, voltage - rated 16VDC, current rating (amps) 2.5 A, termination Solder.
In Stock: 3,562
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
| Actual Diameter | 0.098" (2.50mm ID), 0.252" (6.40mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Through Hole |
| Mounting Feature | - |
| Termination | Solder |
| Shielding | Unshielded |
| Features | - |
| Insulation Color | - |
| Voltage - Rated | 16VDC |
| Current Rating (Amps) | 2.5 A |
| Mating Length/Depth | 0.374" (9.50mm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for PJ-034B and get a quote within 24 hours.
