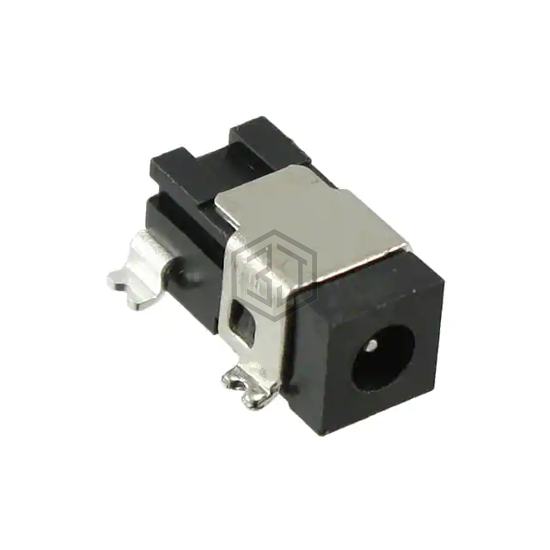

CONN PWR JACK 0.7X2.35MM SOLDER
PJ-032H-SMT-TR is a Barrel - Power Connectors manufactured by CUI Devices. CONN PWR JACK 0.7X2.35MM SOLDER. Key specifications: mounting type Surface Mount, Right Angle, voltage - rated 24VDC, current rating (amps) 2.5 A, termination Solder.
In Stock: 3,268
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1 |
| Actual Diameter | 0.026" (0.65mm ID), 0.110" (2.80mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Surface Mount, Right Angle |
| Mounting Feature | - |
| Termination | Solder |
| Shielding | Shielded |
| Features | Board Guide |
| Insulation Color | - |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 2.5 A |
| Mating Length/Depth | 0.315" (8.00mm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for PJ-032H-SMT-TR and get a quote within 24 hours.
