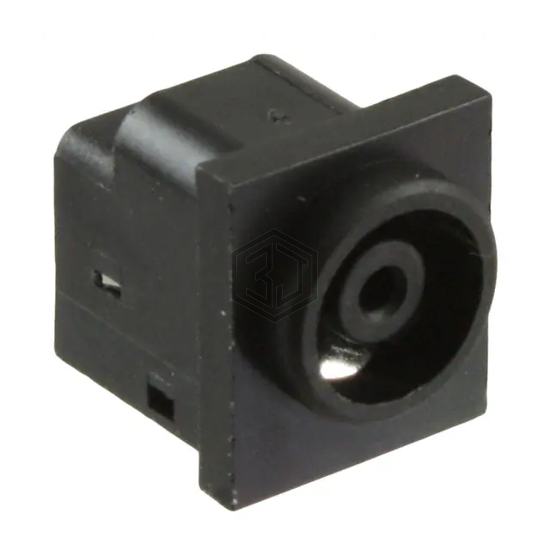

CONN PWR JACK 1.4X4.3X6.5MM SLDR
PJ-025 is a Barrel - Power Connectors manufactured by CUI Devices. CONN PWR JACK 1.4X4.3X6.5MM SLDR. Key specifications: mounting type Through Hole, Right Angle, voltage - rated 24VDC, current rating (amps) 3 A, termination Solder.
In Stock: 47,341
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Female |
| Industry Recognized Mating Diameter | 1.40mm ID (0.055"), 4.30mm ID (0.169"), 6.50mm OD (0.256") EIAJ-5 |
| Actual Diameter | 0.057" (1.45mm ID), 0.157" (4.00mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Through Hole, Right Angle |
| Mounting Feature | - |
| Termination | Solder |
| Shielding | Unshielded |
| Features | Board Guide |
| Insulation Color | - |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 3 A |
| Mating Length/Depth | 0.354" (9.00mm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
