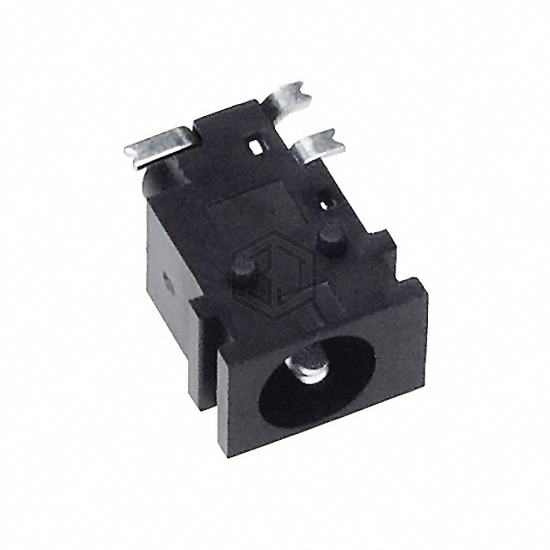

CONN PWR JACK 1.75X4.75MM SOLDER
PJ-021-SMT-1 is a Barrel - Power Connectors manufactured by CUI Devices. CONN PWR JACK 1.75X4.75MM SOLDER. Key specifications: mounting type Surface Mount, Right Angle, voltage - rated 16VDC, current rating (amps) 5 A, termination Solder.
In Stock: 1,955
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 1.75mm ID (0.068"), 4.75mm OD (0.187") |
| Actual Diameter | 0.065" (1.65mm ID), 0.203" (5.15mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Surface Mount, Right Angle |
| Mounting Feature | - |
| Termination | Solder |
| Shielding | Unshielded |
| Features | - |
| Insulation Color | - |
| Voltage - Rated | 16VDC |
| Current Rating (Amps) | 5 A |
| Mating Length/Depth | 0.315" (8.00mm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for PJ-021-SMT-1 and get a quote within 24 hours.
