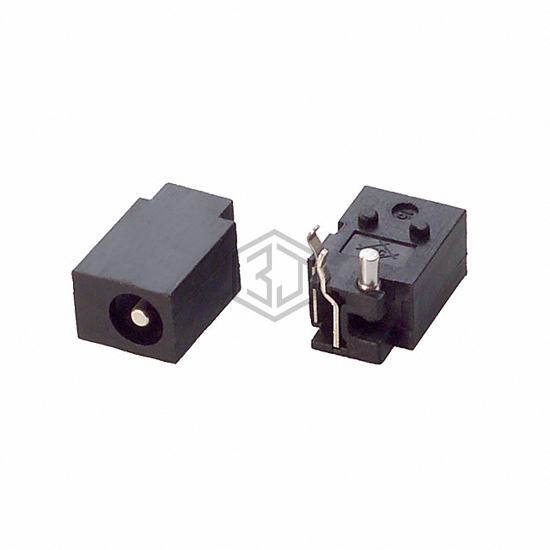

CONN PWR JACK 1.7X4MM KINKED PIN
PJ-016 is a Barrel - Power Connectors manufactured by CUI Devices. CONN PWR JACK 1.7X4MM KINKED PIN. Key specifications: mounting type Through Hole, Right Angle, voltage - rated 12VDC, current rating (amps) 1 A, termination Kinked Pin.
In Stock: 6,366
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 1.70mm ID (0.067"), 4.00mm OD (0.157") EIAJ-2 |
| Actual Diameter | 0.065" (1.65mm ID), 0.173" (4.40mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Through Hole, Right Angle |
| Mounting Feature | - |
| Termination | Kinked Pin |
| Shielding | Unshielded |
| Features | Board Guide |
| Insulation Color | - |
| Voltage - Rated | 12VDC |
| Current Rating (Amps) | 1 A |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for PJ-016 and get a quote within 24 hours.
