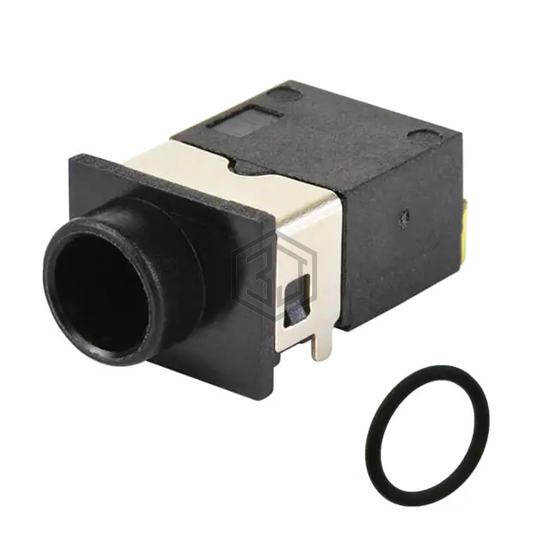

POWER JACK, IP67, 2.5 X 5.5, 3.5
PJ-001BH-67 is a Barrel - Power Connectors manufactured by CUI Devices. POWER JACK, IP67, 2.5 X 5.5, 3.5. Key specifications: mounting type Through Hole, Right Angle, voltage - rated 24VDC, current rating (amps) 5 A, termination Solder.
In Stock: 2,317
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
| Actual Diameter | 0.098" (2.50mm ID), 0.248" (6.30mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Through Hole, Right Angle |
| Mounting Feature | - |
| Termination | Solder |
| Shielding | Shielded |
| Features | Board Guide |
| Insulation Color | - |
| Voltage - Rated | 24VDC |
| Current Rating (Amps) | 5 A |
| Mating Length/Depth | 0.394" (10.00mm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
