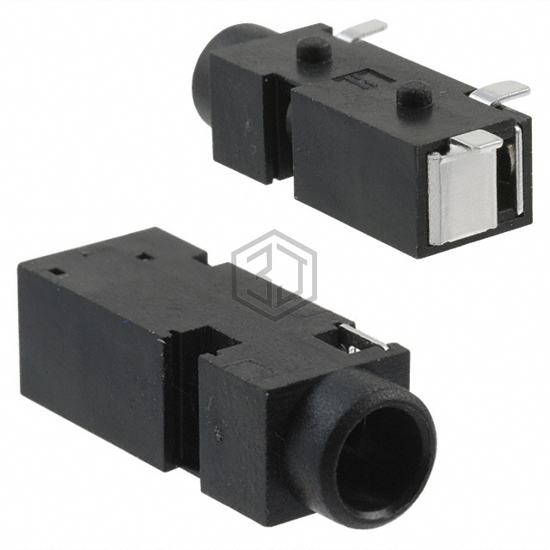

CONN JACK MONO 3.5MM SMD
MJ-3523-SMT-TR is a Barrel - Audio Connectors manufactured by CUI Devices. CONN JACK MONO 3.5MM SMD. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -25°C ~ 85°C, termination Solder, number of positions/contacts 2 Conductors, 3 Contacts.
In Stock: 18,837
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Phone Jack |
| Gender | Female |
| Signal Lines | Mono |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Actual Diameter | 0.142" (3.60mm) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Shielding | Unshielded |
| Features | Board Guide |
| Insulation Color | - |
| Operating Temperature | -25°C ~ 85°C |
Submit your RFQ for MJ-3523-SMT-TR and get a quote within 24 hours.
