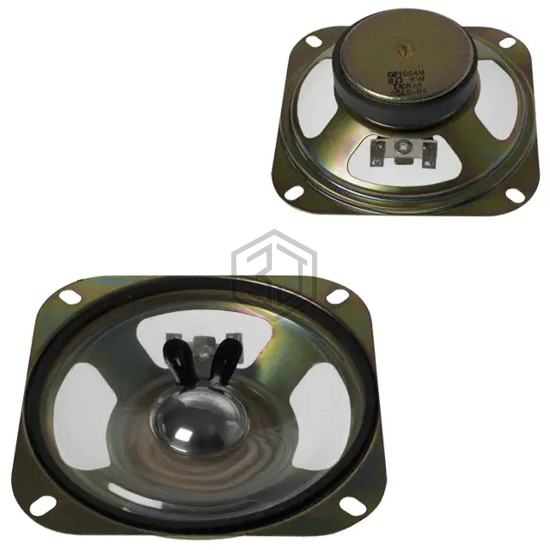

SPEAKER 8OHM 6W TOP PORT 93DB
GF1004M is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 6W TOP PORT 93DB. Key specifications: size / dimension 4.032" L x 4.032" W (102.40mm x 102.40mm), termination Solder Eyelet(s), power - max 10 W, frequency range 230 Hz ~ 14 kHz.
In Stock: 3,809
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 230 Hz ~ 14 kHz |
| Frequency - Self Resonant | 230Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 93.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 6 W |
| Power - Max | 10 W |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 4.032" L x 4.032" W (102.40mm x 102.40mm) |
| Height - Seated (Max) | 1.437" (36.50mm) |
Submit your RFQ for GF1004M and get a quote within 24 hours.
