SPEAKER 8OHM 20W TOP PORT 90DB

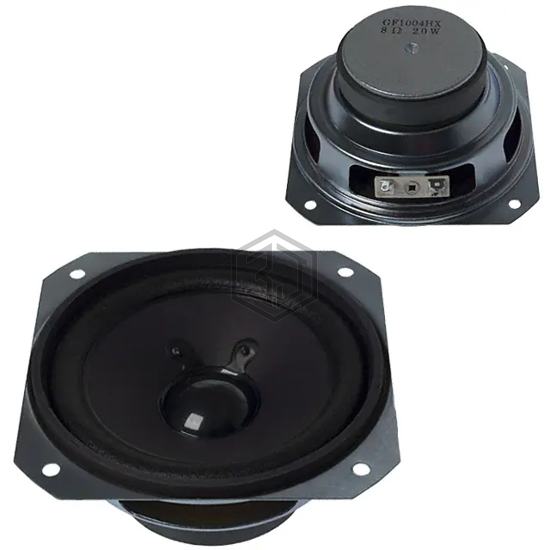

GF1004H is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 20W TOP PORT 90DB. Key specifications: size / dimension 4.016" L x 4.016" W (102.00mm x 102.00mm), termination Solder Eyelet(s), power - max 40 W, frequency range 100 Hz ~ 10 kHz.
In Stock: 3,582
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 100 Hz ~ 10 kHz |
| Frequency - Self Resonant | 100Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 90.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 20 W |
| Power - Max | 40 W |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Paper |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 4.016" L x 4.016" W (102.00mm x 102.00mm) |
| Height - Seated (Max) | 2.008" (51.00mm) |
Submit your RFQ for GF1004H and get a quote within 24 hours.
