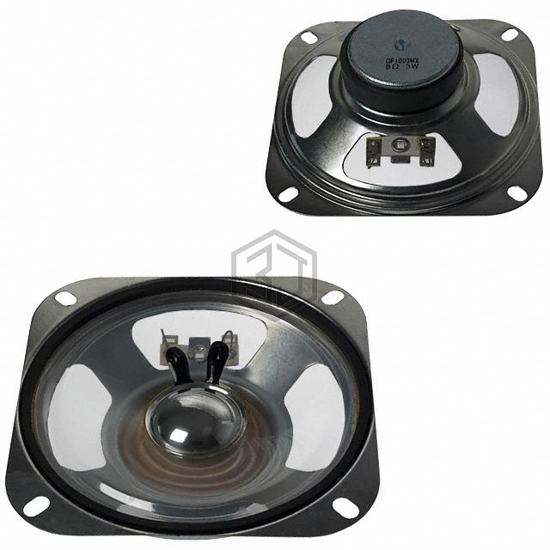

SPEAKER 8OHM 3W TOP PORT 93DB
GF1003M is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 3W TOP PORT 93DB. Key specifications: size / dimension 4.032" L x 4.032" W (102.40mm x 102.40mm), termination Solder Eyelet(s), power - max 5 W, frequency range 250 Hz ~ 13 kHz.
In Stock: 2,978
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 250 Hz ~ 13 kHz |
| Frequency - Self Resonant | 250Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 93.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 3 W |
| Power - Max | 5 W |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 4.032" L x 4.032" W (102.40mm x 102.40mm) |
| Height - Seated (Max) | 1.453" (36.90mm) |
