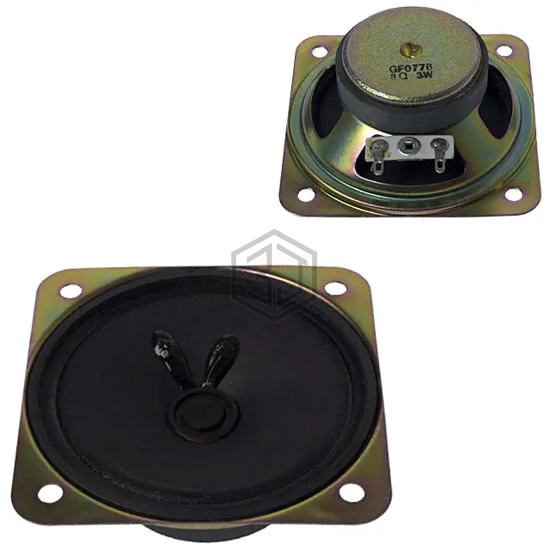

SPEAKER 8OHM 3W TOP PORT 95DB
GF0778B is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 3W TOP PORT 95DB. Key specifications: size / dimension 3.032" L x 3.032" W (77.00mm x 77.00mm), termination Solder Eyelet(s), power - max 5 W, frequency range 200 Hz ~ 15 kHz.
In Stock: 10,067
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 200 Hz ~ 15 kHz |
| Frequency - Self Resonant | 250Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 95.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 3 W |
| Power - Max | 5 W |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Paper |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 3.032" L x 3.032" W (77.00mm x 77.00mm) |
| Height - Seated (Max) | 1.201" (30.50mm) |
Submit your RFQ for GF0778B and get a quote within 24 hours.
