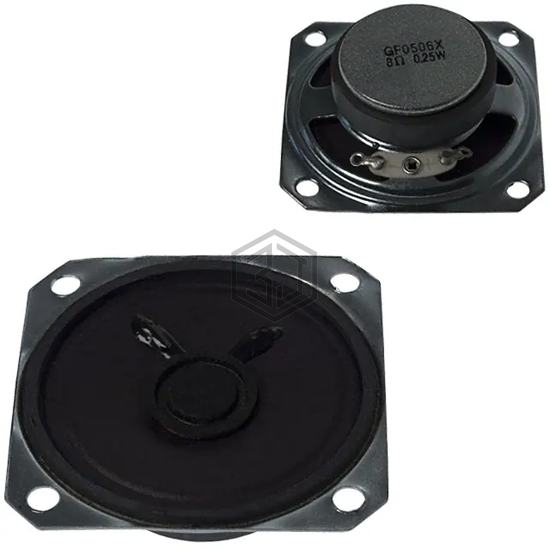

SPEAKER 8OHM 250MW TOP PORT 90DB
GF0506 is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 250MW TOP PORT 90DB. Key specifications: size / dimension 1.969" L x 1.969" W (50.00mm x 50.00mm), termination Solder Eyelet(s), power - max 500 mW, frequency range 344 Hz ~ 7.2 kHz.
In Stock: 11,791
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 344 Hz ~ 7.2 kHz |
| Frequency - Self Resonant | 430Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 82.00 |
| Efficiency - Testing | 250mW/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 250 mW |
| Power - Max | 500 mW |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Paper |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.969" L x 1.969" W (50.00mm x 50.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
Submit your RFQ for GF0506 and get a quote within 24 hours.
