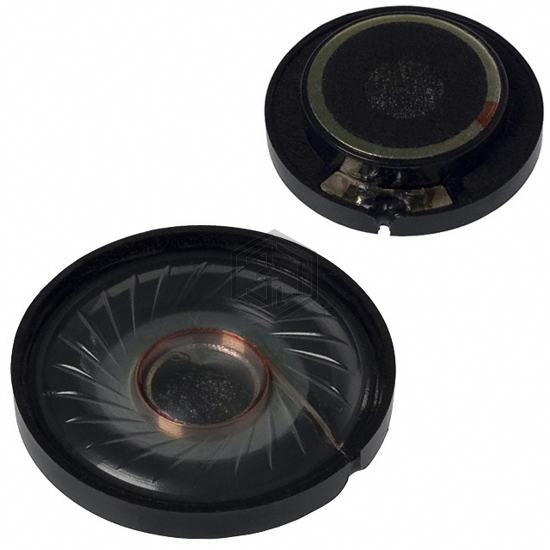

SPEAKER 8OHM 100MW TOP PORT 99DB
GF0401M is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 100MW TOP PORT 99DB. Key specifications: size / dimension 1.575" Dia (40.00mm), termination Solder Pads, power - max 100 mW, frequency range 144 Hz ~ 20 kHz.
In Stock: 5,662
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 144 Hz ~ 20 kHz |
| Frequency - Self Resonant | 180Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 99.00 |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 40 mW |
| Power - Max | 100 mW |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 0.366" (9.30mm) |
