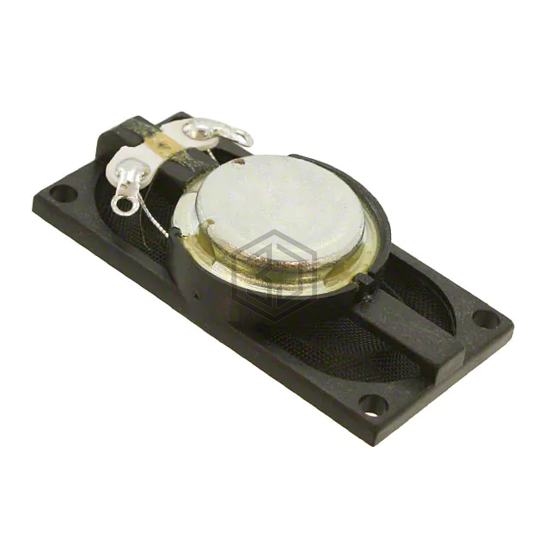

SPEAKER 8OHM 1W TOP PORT 89DB
GC0401S is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 1W TOP PORT 89DB. Key specifications: size / dimension 1.575" L x 0.787" W (40.00mm x 20.00mm), termination Solder Eyelet(s), power - max 2 W, frequency range 440 Hz ~ 12 kHz.
In Stock: 3,915
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 440 Hz ~ 12 kHz |
| Frequency - Self Resonant | 550Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 89.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 2 W |
| Port Location | Top |
| Shape | Oval, Rectangular Frame |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
Submit your RFQ for GC0401S and get a quote within 24 hours.
