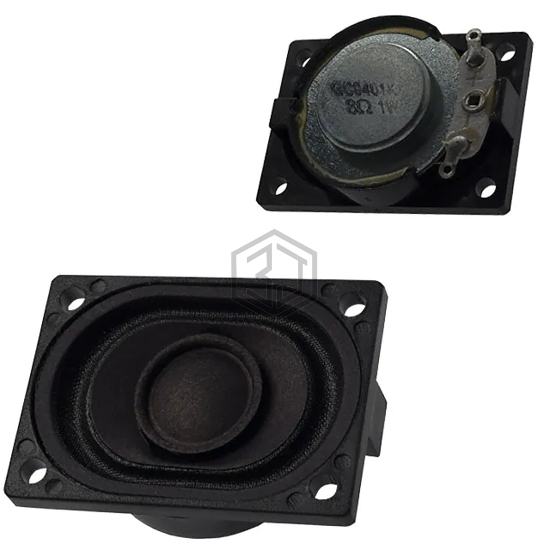

SPEAKER 8OHM 1W TOP PORT 82DB
GC0401K is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 1W TOP PORT 82DB. Key specifications: size / dimension 1.575" L x 1.122" W (40.00mm x 28.50mm), termination Solder Eyelet(s), power - max 2 W, frequency range 390 Hz ~ 20 kHz.
In Stock: 15,845
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 390 Hz ~ 20 kHz |
| Frequency - Self Resonant | 390Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 82.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 2 W |
| Port Location | Top |
| Shape | Oval, Rectangular Frame |
| Material - Cone | Paper |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.575" L x 1.122" W (40.00mm x 28.50mm) |
| Height - Seated (Max) | 0.445" (11.30mm) |
Submit your RFQ for GC0401K and get a quote within 24 hours.
