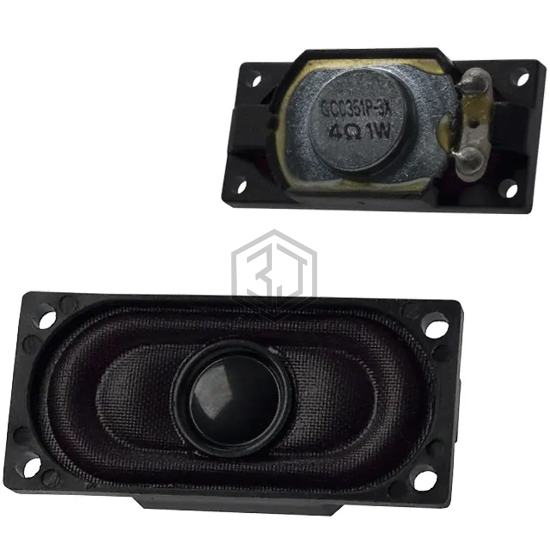

SPEAKER 4OHM 1W TOP PORT 82DB
GC0351P-3 is a Speakers manufactured by CUI Devices. SPEAKER 4OHM 1W TOP PORT 82DB. Key specifications: size / dimension 1.378" L x 0.630" W (35.00mm x 16.00mm), termination Solder Eyelet(s), power - max 2 W, frequency range 630 Hz ~ 13 kHz.
In Stock: 6,097
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 630 Hz ~ 13 kHz |
| Frequency - Self Resonant | 630Hz |
| Impedance | 4 Ohms |
| Efficiency - dBA | 82.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 2 W |
| Port Location | Top |
| Shape | Oval, Rectangular Frame |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 1.378" L x 0.630" W (35.00mm x 16.00mm) |
| Height - Seated (Max) | 0.291" (7.40mm) |
