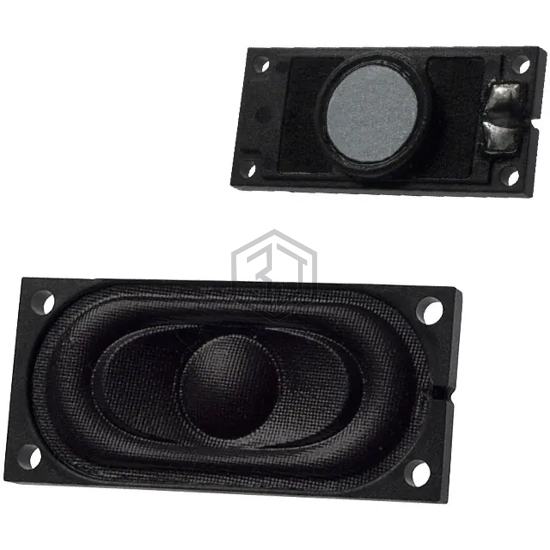

SPEAKER 8OHM 1W TOP PORT 81DB
GC0351M is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 1W TOP PORT 81DB. Key specifications: size / dimension 1.378" L x 0.630" W (35.00mm x 16.00mm), termination Solder Pads, power - max 1.5 W, frequency range 520 Hz ~ 20 kHz.
In Stock: 20,770
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 520 Hz ~ 20 kHz |
| Frequency - Self Resonant | 650Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 81.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 1.5 W |
| Port Location | Top |
| Shape | Oval, Rectangular Frame |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 1.378" L x 0.630" W (35.00mm x 16.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for GC0351M and get a quote within 24 hours.
