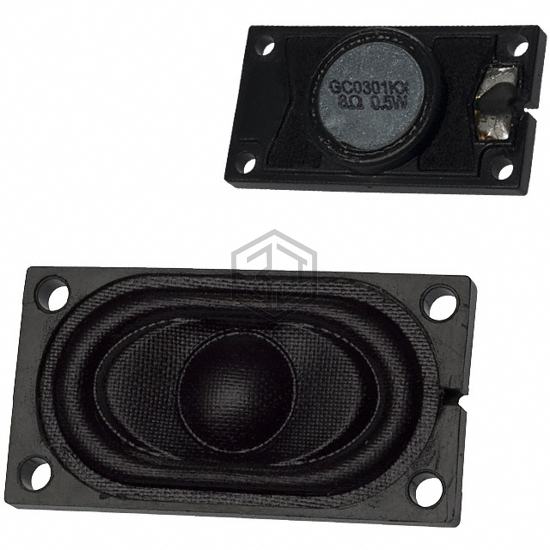

SPEAKER 8OHM 500MW TOP PORT 77DB
GC0301K is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 500MW TOP PORT 77DB. Key specifications: size / dimension 1.181" L x 0.630" W (30.00mm x 16.00mm), termination Solder Pads, power - max 1 W, frequency range 400 Hz ~ 4 kHz.
In Stock: 1,555
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 400 Hz ~ 4 kHz |
| Frequency - Self Resonant | 500Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 77.00 |
| Efficiency - Testing | 500mW/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 500 mW |
| Power - Max | 1 W |
| Port Location | Top |
| Shape | Oval, Rectangular Frame |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 1.181" L x 0.630" W (30.00mm x 16.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for GC0301K and get a quote within 24 hours.
