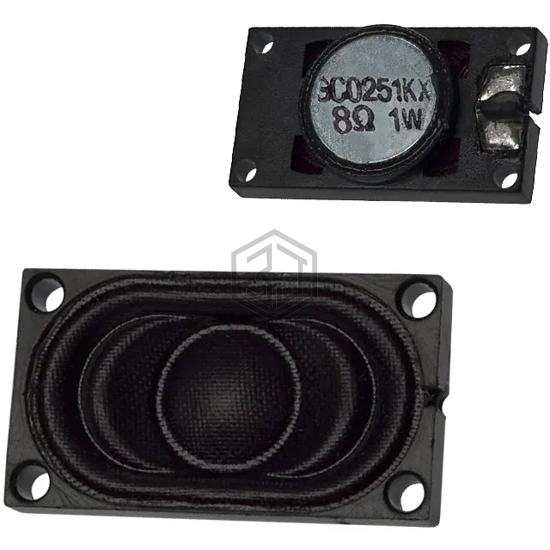

SPEAKER 8OHM 1W TOP PORT 80DB
GC0251K is a Speakers manufactured by CUI Devices. SPEAKER 8OHM 1W TOP PORT 80DB. Key specifications: size / dimension 0.984" L x 0.551" W (25.00mm x 14.00mm), termination Solder Pads, power - max 1.5 W, frequency range 592 Hz ~ 20 kHz.
In Stock: 3,770
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 592 Hz ~ 20 kHz |
| Frequency - Self Resonant | 740Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 81.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 1.5 W |
| Port Location | Top |
| Shape | Oval, Rectangular Frame |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
| Height - Seated (Max) | 0.205" (5.20mm) |
Submit your RFQ for GC0251K and get a quote within 24 hours.
